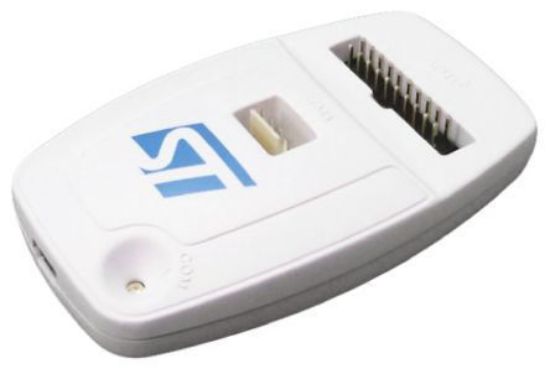

ST-Link v2 Programmer/Debugger

This programmer/debugger will allow users to upgrade or modify the firmware in the LDS01 door/window sensor, LWL01 leak sensor and the LHT65 Temperature and Humidity sensor. Instructions for upgrading the firmware can be found in the appropriate manuals. Although all products purchased from Tememetry2U will be upgraded to the the latest firmware before shipment, new firmware may be released at a later date to fix bugs and add features. As well as being compatible with Telemetry2U products, this programmer will work with all STM8 and STM32 processors.
Manufacturer: Dragino
Availability: Out of stock
SKU: St-Linkv2
$59- +GST
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. STM8 applications use the USB full speed interface to communicate with ST Visual Develop (STVD) or ST Visual Program (STVP) software. STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.

Products specifications
Attribute nameAttribute value
Features
  • 5V power supplied by a USB connector
  • USB 2.0 full speed compatible interface
  • USB standard A to mini B cable
  • 1.65V to 5.5V application voltage supported on SWIM interface
  • SWIM low speed and high speed modes supported
  • 1.65V to 3.6V application voltage supported on the JTAG/SWD interface and 5V tolerant inputs
  • Direct firmware update feature supported
  • Status LED which blinks during communication with the PC
Applications
  • Embedded Design & Development
  • Upgrade firmware ion LGH65, LDS01 and LWL01
  • Upgrade/program and STM32 based product
Package contents

Package Contents to be added

Dimensions and weight

Dimensions to be added


Documents

Download Directory
