Pole Mount Solar Sensor Interface Kit

T2U Solar Sensor Interface Kit

The T2U Solar Sensor Interface is a versatile and reliable power solution for remote outdoor applications. It's designed to power LoRaWAN, NB-IoT, and LTE solutions, but can be used for a wide range of other applications as well. It's normally shipped without an end-device but we can fit an RS485 tranceiver that will work with either LoRaWAN or LTE (4/5G) upon request.  We can also fit an I/O controller so you can control power to external devices with relay outputs or communicate with sensors hosting a 4-20mA or analogue voltage output.

Key Features

• 20W solar panel with IP67 connector and bird guard for optimal power output
• Adjustable panel angle using two clamping bolts
• Online calculator available to determine the best angle
• 280mm x 280mm x 130mm ABS enclosure with UV-stabilization and IP67 weatherproof rating
• Hinged lid and latches for easy access
• Includes ABS mounting plate for additional hardware
• 12V 7Ah SLA battery and mounting bracket with inline 3A fuse
• 3A solar charge controller mounted on side of enclosure
• Provides protection against overcharge, over discharge, over current, and short circuit
• Venting plug and IP67 push-button switch for added safety
• Wago terminal block assembly with self-forming screws for quick mounting
• Fully charges 7Ah battery in approximately 4.16 hours under ideal conditions
• Battery life of approximately 9.7 days with no sun for a Class-C LoRaWAN end-device with an average current of 30mA at 12V

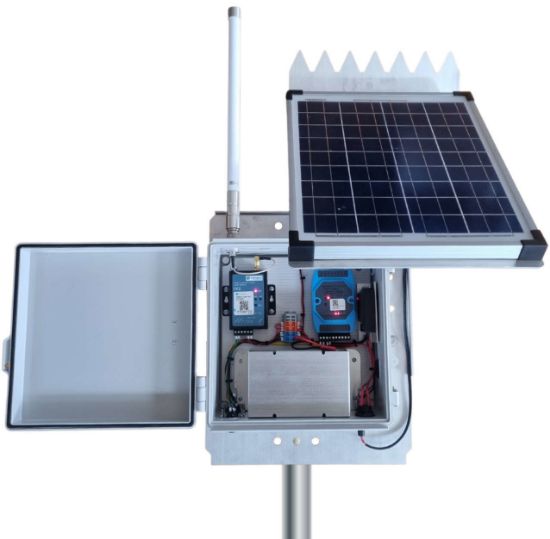

The T2U Solar Sensor Interface arrives partially assembled, requiring only the installation of the solar panel bracket and ABS enclosure to the backing plate. The entire assembly can then be easily attached to a standard 50mm (60mm OD) signpost using the included hardware.

Applications

The T2U Solar Sensor Interface is ideal for a variety of remote outdoor applications, such as:

• Environmental monitoring
• Agricultural monitoring
• Wildlife tracking
• Remote weather stations
• Industrial control systems

Technical Specifications

• Dimensions: 280mm x 280mm x 130mm
• Weight: 10Kg
• Operating temperature range: −20 °C ~ 60 °C

With its robust design, reliable power, and easy installation, the T2U Solar Sensor Interface is the perfect solution for any remote outdoor application.

Please check out this page for assembly and installation instructions.
